New Product Annoucement
2-inch 256RGB x 64 Full-Color Organic Light-Emitting Diode Display
Features of Futaba’s Full Color OLED:
- High brightness, high definition, full color OLED
- Luminance = 350cd/m2 , 135PPI
- Good color reproducibility by white organic material + color filter method.
- High contrast with near perfect black, create a sense of luxury.
- It’s high brightness and long lifetime is achieved by using the same organic material as automotive OLEDs.
- An optional touch keys may be added .
Specification
| Resolution | 256RGB x 64 |
| Pixel Pitch | 0.188 x 0.186 |
| Active Area | 48.103 x 11.880 |
| Panel Size | 52.7 x 22.29 |
| Color (color coordinate) | 65k Color |
| Luminance | 350 cd/m² without CPL*¹*² |
*¹ 30% Light on
*² CPL: Circular Polarizer
Features
| Operating Temperature | -20 ~ +75 degC |
| Storage Temperature | -40 ~ +85 degC |
| Wide viewing angle | Over 160 degree |
| High speed response | ~ 10 μ sec |
| Operating Life Time Expectancy*¹*² | 11,000 hrs (30% Lighting rate, RT) |
| Storage Life Time Expectancy*¹ | 5 years (50% Pixels shrinkage time.) |
*¹ Lifetime Expectancy is not guaranteed one but expected lifetime at normal conditions.
*² Luminance to Decrease in Half.

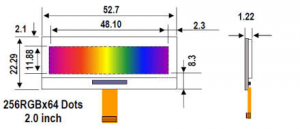

Product Outline
Pixel Detail
Product Configuration Outline
| Configuration | OEL panel + Driver IC on Glass + FPC |
| Driver IC | LD7226, LDT |
| Power Supply | OEL drive voltage = 16.0 ±0.5V, Logic power voltage(VDD)= 3.0V |
| Power Consumption | About 320mW at 350cd/m2 (Lighting rate = 30%, estimated) |
| Interface | SPI |
Proposal of Application
| Sub-display for IoT devices, gaming and medical devices. |
